Redshift 1500

Yugen Redshift 1500 Cabin

The enlarged shifted cabin enhances the interaction between interior/exterior and daylight opportunities – Complete architectural drawings and blueprint plans to build this cabin. Size for a small family it includes a primary bedroom with a dedicated bathroom, secondary bedroom with shared bathroom, open kitchen living and dining areas. Wraparound deck with kitchen pass-through, both covered and sunbathing areas. Complete single level living space on the main floor and a large loft provides a play area and bunkroom. DIY friendly. Structure and form for economical building. The Redshift Cabin can be built anywhere with either slab on grade foundation or post foundation. Designed by an Architect for off-grid living.

Yugen Cabins focuses on high-performance construction, efficient designs, healthy spaces, and connection to nature. Digital PDF download includes the following: 20 Sheets - 24” x 36” - Formatted for Building Permit Applications. Imperial Dimensions Only (Metric available – please inquire)

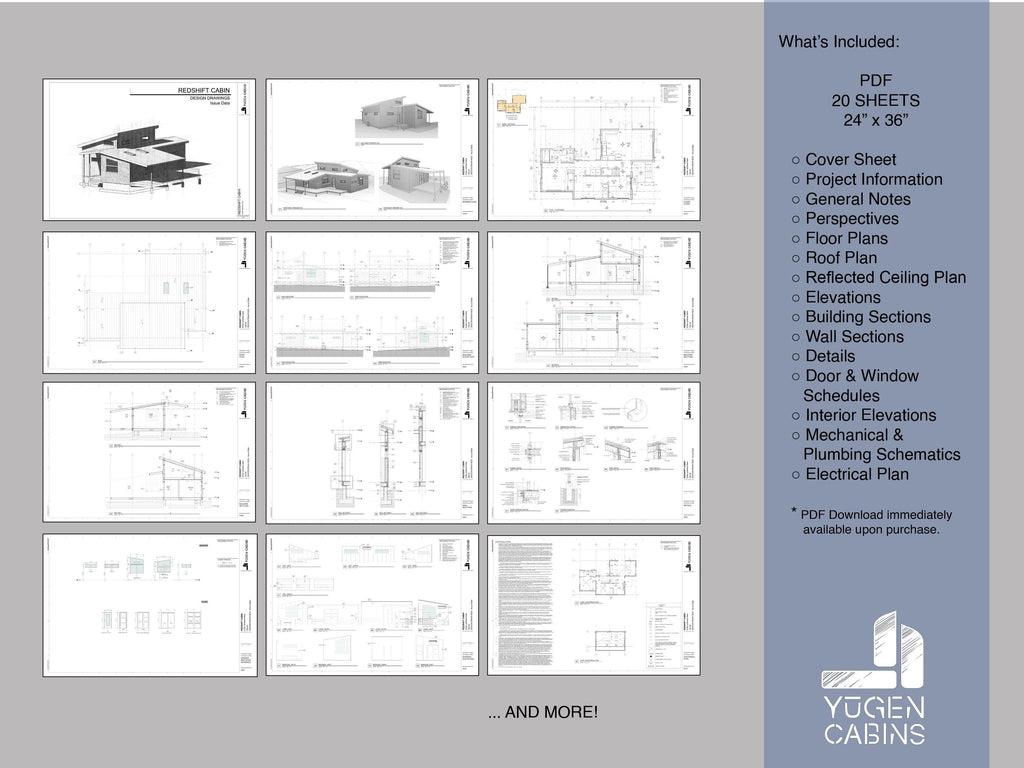

G000 – Cover Sheet
G101 – Project Information
G102 – General Notes
G103 – Perspectives
A100 - Foundation Plan

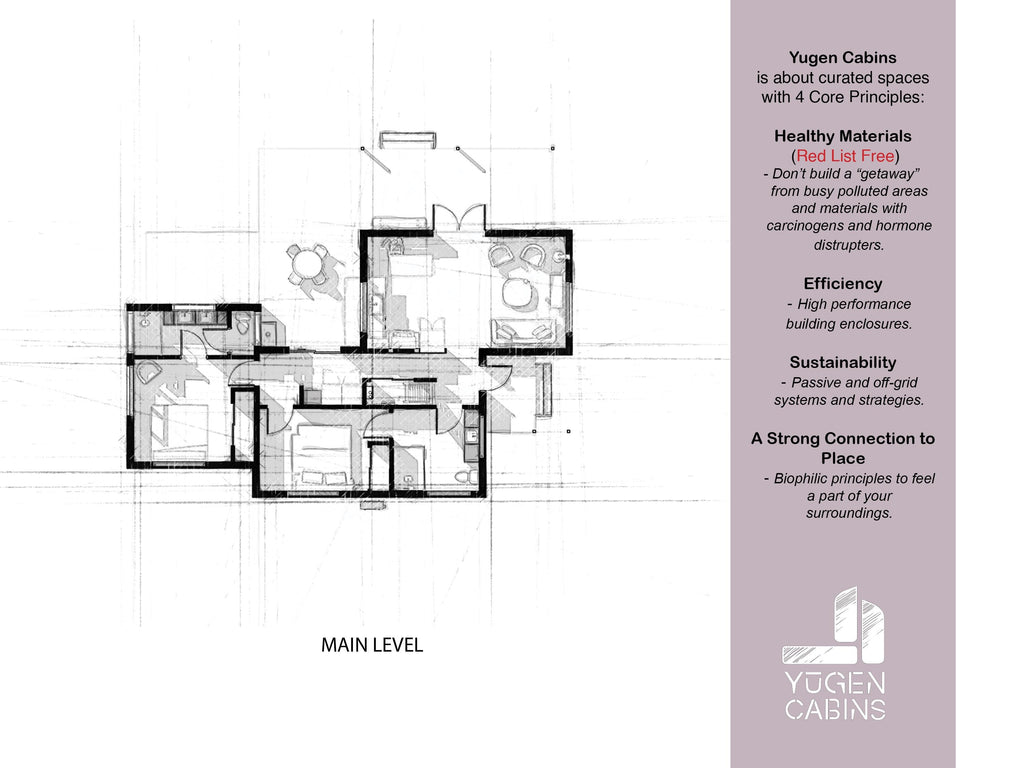

A101 – Floor Plans
A102 – Floor Plans
A103 - Roof Plan
A104 – Reflected Ceiling Plans
A201 – Building Elevations
A301 – Building Sections
A302 – Building Sections
A401 – Wall Sections
A501 – Details
A601 – Window and Door Schedules
A602 – Assembly Schedule
A701 – Interior Elevations
A702 – Interior Elevations
MP101 – Mechanical & Plumbing Schematics
E101 – Electrical Plan

Plans are designed per standard North American building codes and IRC (International Building Code)
Total Area: Approximately 1500 SF Gross Building + Exterior Deck Areas
Complete Architectural Drawing Set PDF
Digital Download Only - PDF Printable on Standard Sheets

Please note: In most areas in the United States a building permit will require stamped structural plans from a Licensed Engineer and a Site Plan in addition to the provided PDF. Please contact us before or after purchase with any questions. We can modify plans and design custom plans per request. Plans are copyrighted by Yugen Cabins and intended for one single personal use only. No commercial use or distribution allowed.
