The Osprey

The Osprey Cabin

28’ x 28’ Cottage with Wraparound Decks

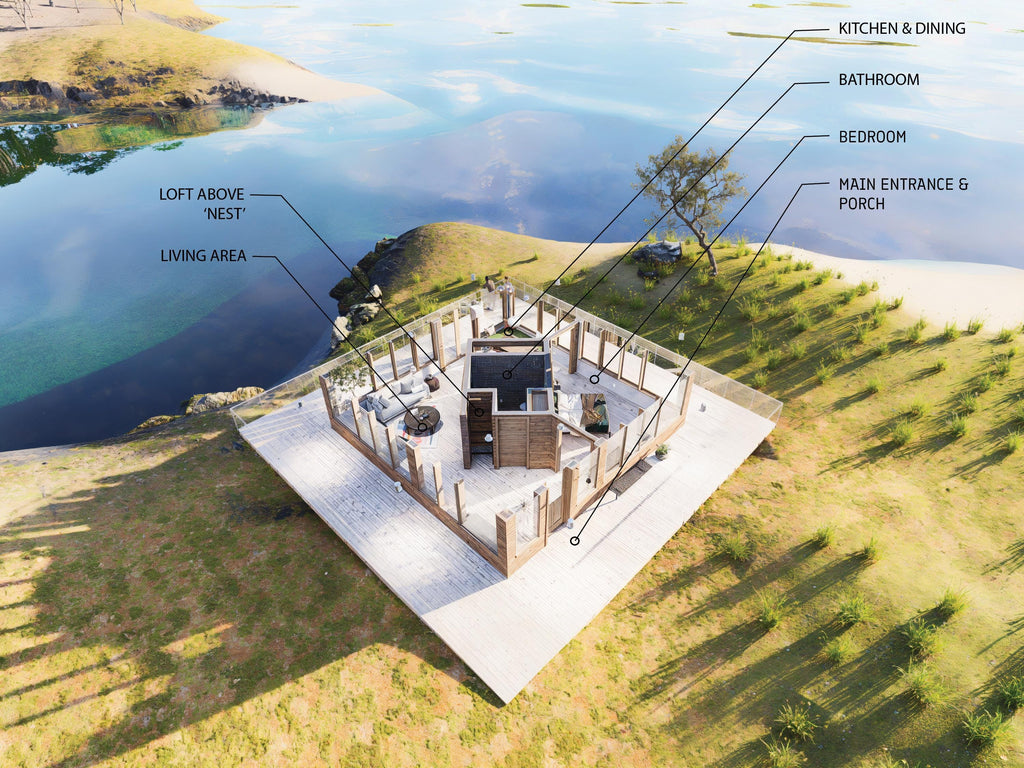

Complete architectural drawings and blueprint plans to build this cabin. Wraparound exterior deck, upper loft, 360-degree views on both levels to blend exterior and interior. Living space, kitchen/dining, bedroom, and bathroom on main floor. DIY friendly. The Osprey Cabin can be built anywhere but was designed for hilltop locations with great views. Designed by an Architect for off-grid living. Yugen Cabins focuses on high-performance construction, efficient designs, healthy spaces, and connection to nature.

Digital PDF download includes the following: 18 Sheets - 24” x 36” - Formatted for Building Permit Applications. Imperial Dimensions Only (Metric available – please inquire).

G000 – Cover Sheet
G101 – Project Information
G102 – General Notes
G013 – Perspectives
A101 – Foundation Plan
A102 – Framing Plans

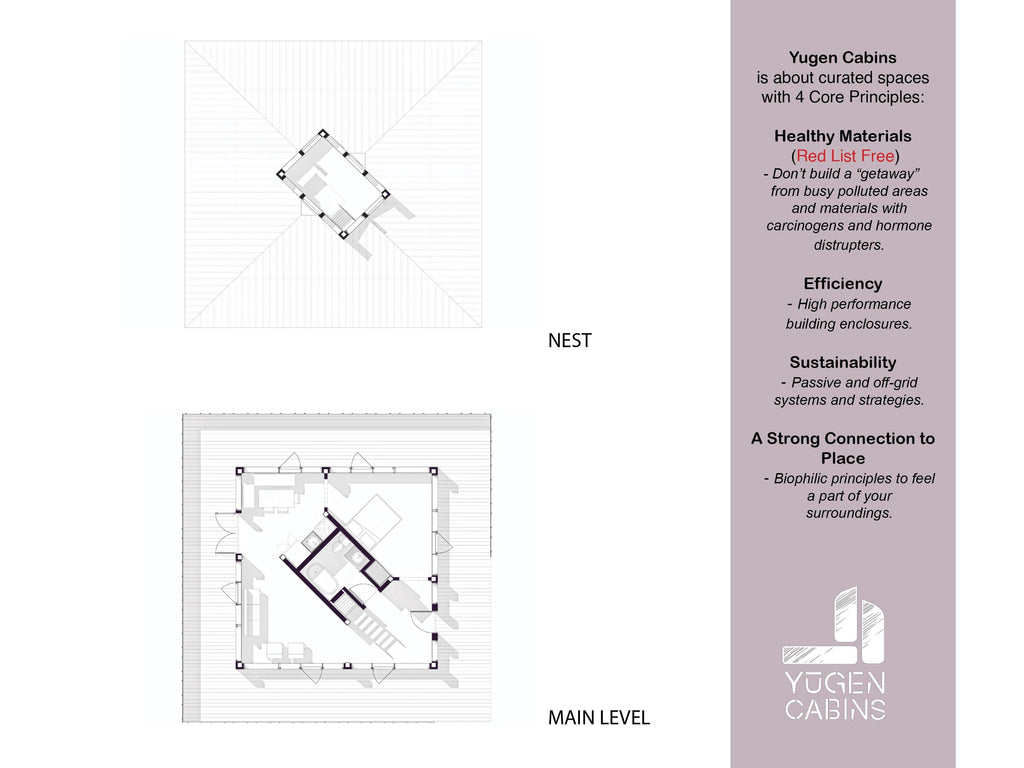

A103 – Floor Plans
A104 – Roof Plan
A105 - Reflected Ceiling Plans
A201 – Building Elevations
A301 – Building Sections
A401 – Wall Sections
A501 – Details
A601 – Window and Door Schedules
A602 – Assembly Schedule
A701 – Interior Elevations
MP101 – Mechanical & Plumbing Schematics
E101 – Electrical Plan

Plans are designed per standard North American building codes and IRC (International Building Code)

Size: 28’ x 28’ with 8’ Wraparound Porches
Total Area: 1,050 SF Interior, 1,000 SF Exterior Decks
Complete Architectural Design Drawing Set PDF
Digital Download Only- -PDF Printable on Standard Sheets

Please note: In most areas in the United States a building permit will require stamped structural plans from a Licensed Engineer and a Site Plan in addition to the provided PDF. Please contact us before or after purchase with any questions. We can modify plans and design custom plans per request. Plans are copyrighted by Yugen Cabins and intended for one single personal use only. No commercial use or distribution allowed.
